Self Organizing Map



Self Organizing Map

Ideas first introduced by C. von der Malsburg (1973) and developed and refined by T. Kohonen (1982)

 It is a type of Unsupervised competitive learning. It is primarily used for the organization and visualization of complex data.

SOM Architecture

                    It is two layers of Neuron Architecture 1. Input layer 2.Output Layer. Each input Neuron is                     connected to each output Neuron.It is fully connected Network.The output map usually has                     two dimensions. One and three dimensions are also used

  Neurons in output map can be laid out in different patterns

o   Rectangular

o   Hexagonal

o   Random

SOM Training

       “Neighbourhood” is an important concept in SOM training.

         The output map neurons that adjoin the winner

         Neighborhood size describes the distance between neighbors and  the winning neuron.

          Neighbors weights are also modified

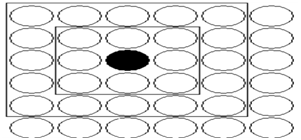

Neighborhood  Concept

Self-organizing map is working in three different phases

•       Competition

•       Cooperation

•       Synaptic Adaptation

Competition

1.       Randomly initialise all weights

2.       Select input vector x = [x₁, x₂, x₃, … , x_n]

3.       w_j = [w_j1,w_j2 , ... ,w_jm]^T

        where j = 1,2,...,l (I=total number of neurons in the network)

           4.       Compare x with weights w_j for each neuron j to determine winner

                i(x) = arg min_j||x – w_j ||

5.  Update winner so that it becomes more like x, together with      the winner’s                         neighbours

6.  Adjust parameters: learning rate & ‘neighbourhood function’

             7.  Repeat from (2) until the map has converged (i.e. no noticeable changes in the weights) or                             pre-defined no. of training cycles have

Cooperation

•    How to define a topological neigborhood that is neurobiologically correct?
•     Let h_ij denote the topological neighborhood centered on winning neuron i, and encompassing a set of excited neurons denoted by j.
•    The topological neighborhood is symmetric about the maximum point
•    The amplitude of the topological neighborhood decreases monotonically with the increasing lateral distance

                            h_j,i(x) (n) = exp(d²_j,i/2s²(n))

                        where

                            s(n) = s₀exp(-n/t₁),  n =0,1,2



•     The distance among neurons is defined as the Euclidean metric. For example for a 2D lattice we have:

•  from figure    d_ij^{2 =}||rc – r_i||²             d_ij^{2 =}||rj – r_i||²

•       Where the discrete vector rc or  r_j defines the position of excited neuron j and r_i defines the position of the winning neuron in the lattice.

Another characteristic feature of the SOM algorithm is that the size of the neighbourhood shrinks with time. This requirement is satisfied by making the width of the Gaussian function decreasing with time.

   Synaptic Adaptation

 •       w_j(n+1) = w_j(n) + h(n) h_j,i(x)(n)[x-w_j(n)]

•       The synaptic weight  vector w_j of winning neuron i move toward the input vector x. Upon repeated presentations of the training data, the synaptic weight  vector tend to follow the distribution of the input vectors due to the neighborhood updating. ® topological ordering

•       The learning-rate parameter h(n) should be time varying.

h(n) = h ₀exp(-n/t₂),  n =0,1,2,…

•          The adaptive process can be decomposed in two phases:

•          A self-organising or ordering phase;

•          A convergence phase.

•       Self-organizing or ordering phase: (max 1000 iterations)

•       h(n) = [0.1, 0.01], t₂ = 1000

•       One should choose carefully the learning rate and the neighborhood function

•       h_j,i(n) = [”radius” of the lattice, the winning neuron and a couple neighboring neurons around],

                                 t₁ = 1000/ log s₀

•       Convergence phase: (fine tune the feature map, 500*the number of neurons in the network)

          h(n) = 0.01,

          h_j,i(n) =  the winning neuron and one or zero neighboring neurons.

Summary of SOM Algorithm

1.       Initialization: Choose random values for the initial weight vectors w_j(0). The weight vectors must be different for all neurons. Usually, we keep the magnitude of the weights small.

2.       Sampling: Draw a sample x from the input space with a certain probability; the vector x represents the activation pattern that is applied to the lattice. The dimension of x is equal to m.

                  3.   Similarity Matching: Find the best-matching (winning) neuron i(x) at time step n by                                                     using the minimum Euclidean distance criterion:

                                   i(x)=arg min_j ||x – w_j||, j=1,2,…,l

4.       Updating: Adjust the synaptic weight vectors of all neurons by using the update formula:

•                       w_j(n+1) = w_j(n) + h(n) h_ji(x)(n) (x(n) – w_j(n))

               Where h(n) is the learning rate and h_ji(x)(n) is the neighbourhood function around the winner neuron i(x); both h(n) and h_ji(x)(n) are varied dynamically for best results.

5.       Continuation: Continue with step 2 until no noticeable changes in the feature map are observed.

Kohonen SOM’s

•       Initialize weights

•       Repeat until convergence

–      Select next input pattern

–      Find Best Matching Unit

–      Update weights of winner and neighbours

–      Decrease learning rate & neighbourhood size
